Dual Mode XPON CTVA ONU 2.4GHz Wifi GPON Equipment
SPU-GE231AW-HR dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
SPU-GE231AW-HR is fiber to the home multiple service access XPON ONT. It’s based on the mature, stable, high cost performance XPON technology, gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
SPU-GE231AW-HR integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Features
- Single-fiber access, provides internet, CATV, WIFI multiple service
- In compliant with IEEE802.3ah and ITU - T G.984 standard
- Support ONU auto-discovery/Link detection/remote upgrade of software
- Meet 802.11 b/g/n technical standards
- Support VLAN transparent, tag configuration
- Support multicast function
- Support DHCP/Static/PPPOE internet mode
- Support port-binding
- Support OAM/OMCI+TR069 remote management
- Support data encryption and decryption function
- Support Dynamic Bandwidth Allocation (DBA)
- Support MAC filter and URL access control
- Support remote CATV port management
- Support power-off alarm function ,easy for link problem detection
- Specialized design for system breakdown prevention to maintain stable system
- EMS network management based on SNMP ,convenient for maintenance

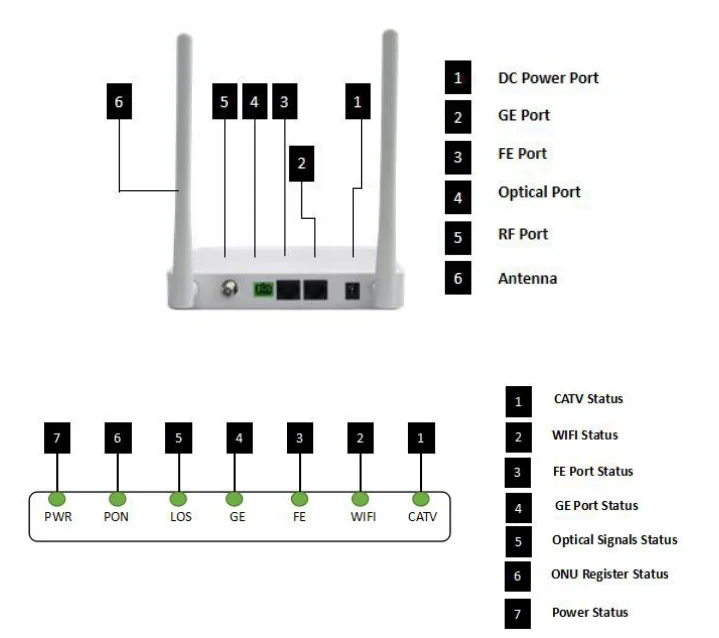

Product interface and LED definitions
| Indicator | Description |
| 1 | CATV | CATV status | On:CATV optical normal Off:The CATV signals are not received |
| 2 | WIFI | WIFI | Blinking:Data is being transmitted On:WIFI function Opens |
| 3 | FE | FE port status | On: Ethernet connection is normal Blinking: Data is being transmitted through the Ethernet port Off: Ethernet connection is not set up |
| 4 | GE | GE port status | On: Ethernet connection is normal Blinking: Data is being transmitted through the Ethernet port Off: Ethernet connection is not set up |
| 5 | LOS | PON optical signals | On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
| 6 | PON | ONU Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Failed to register to OLT; |
| 7 | PWR | Power status | On: The ONU is power on Off: The ONU is Power off |

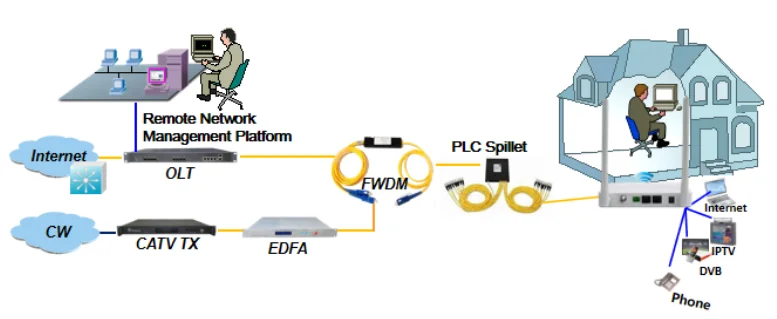

Network application
Typical Solution:FTTH, FTTO
Typical Business:INTERNET,CATV, WIFI
Ordering Information
| Product Name | Part Number | Product Description |
| 1GE+1FE+CATV+WIFI Single fiber | SPU-GE231AW-HR | G/EPON ONU 1*10/100/1000M and 1*10/100M Ethernet interface ,1 CATV Port,with 2.4GHz WIFI,with AGC |
